Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications
Applications For 40 Spline Axles
Dana 60
Ford 9″ (requires 3.250″ or 3.812″ bore case)
3.150″ ID housing ends are necessary for all applications
For use with 3.350″ ID housing ends
Five 1″ lightening holes removes .4 lbs per axle

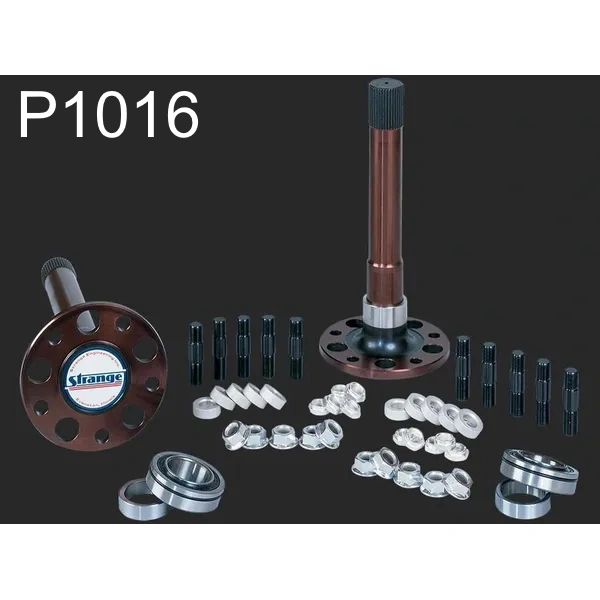

This Pro Race Axle Package Includes:
Hy-Tuf Ultra Strength Axles-
– Forged from low carbon, high manganese, high nickel, and high molybdenum steel
– Majority of machining performed before heat treat to provide consistent hardness
– Five 1″ ID lightening holes in axle flange
– Thru hardened to Rc 45-48 to maximize the material's torsional strength
– Finish machined, including entire shaft, after heat treat to ensure accuracy
– 40 spline with 45º pressure angle
– Black oxide finish to resist corrosion
– Lengths up to 34 7/8″
– Choice of bolt circle
– Forged in the USA
– Designed and machined by Strange Engineering
Sealed Ball Bearings-
– Low friction bearings designed specifically for Drag Racing
– OD grooved for o-ring to eliminate inner axle seal
– Includes o-rings and locking collars
Choice of 5/8″-18 Stud Kit
Bolt Style –
– 5/8″-18 x 3″ Grade 8 fully threaded bolts
– Thin .200″ hex head provides additional clearance
– Width choice of anti-marring/spacer washers
– Includes threaded sleeves, installation tool & flanged lug nuts
– 5/8″-18 chrome moly stud available in six different shank lengths
– Width choice of anti-marring/spacer washers
– Includes thin head self locking inner nuts & flanged lug nuts
P/N- P1016
