Strange HD Pro Completion Kit For Tapered Bearing Pinion Support Installing 35 Spline Pinion Gear
Application
For Strange HD Pro case kits – P3200(3.060) / P3203(3.250) / P3207(3.812)
Installing 35 spline Pro gear
For 28 Spline Pinion – See R3200ST
Description
Supplies remainder of installation components
Less carrier, gear set, and yoke or coupler
Notes
Support races, o-ring, & tail bearing are not included
These parts are supplied in case kits
If Performing a Gear Change – See R5238 / R5238WR
Features
Timken® bearings & races
Support races are not included

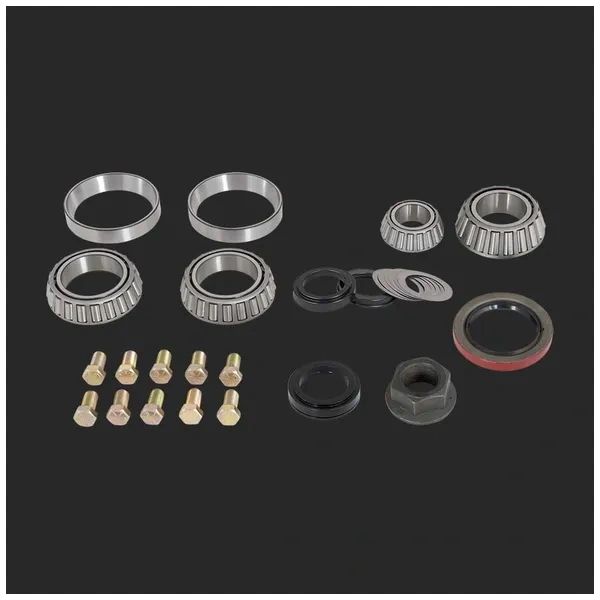

Kit Includes
Front and rear pinion bearings – N1936 / N1938
Side bearings and races – D1588, D1590, or D1592
Pinion seal – N1961
Flanged pinion nut – N1922B
Adjustable pinion preload spacer – N1919
Solid machinable pinion preload spacer – N1924A
1/2″-20 and/or 7/16″-20 ring gear bolts – N1964 / N1965 / D1565RK
Information Required
Case Bore Size
3.062″ / 3.250″ / 3.812″
For Strange Spool
Steel or Aluminum
For Other Spools
The ring gear bolts supplied are designed for a flange thickness of .375″
If your spool exceeds this dimension the ring gear bolts will be too short
Specify if using an aluminum spool
P/N- R3200LT
