Application
Drag Race Door Cars
Description

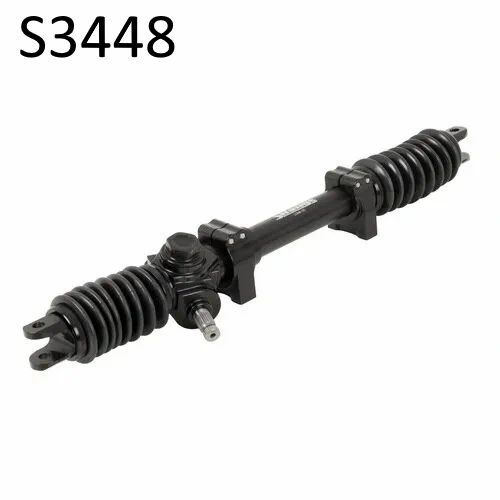

Steering Rack & Pinion
22 to 1 ratio
24.5″ tie rod centers
20° horizontal pinion angle
9/16″-26 spline pinion – Same spline as Mustang / Pinto
0° vertical pinion angle as shipped
Pinion angle can be adjusted to 20° or 40° upward
4.25″ total rack travel
11.60″ mounting clamp centers
5.75 lbs
Features
Body
• 6061-T6511 billet aluminum
• Black anodized finish
Rack & Pinion Gear
• 4140 premium alloy steel
• Hardened rack & pinion gear
Clevis Ends
• 6061-T6511 billet aluminum
• Accepts 3/8″ high misalignment rod ends *
• Adjustable clevis angles
• Black anodized finish
Bellows
• High temperature silicone
Mounting Clamp – Pinion Side
• 6061-T6511 billet aluminum
• 7/16″-14 bolt holes on 1.25″ centers
• Black anodized finish
Mounting Clamp – Opposing Side
• 6061-T6511 billet aluminum
• 3/8″-16 bolt holes on 1.380″ centers
• Black anodized finish
* Rod Ends Not Included
Use HXAM-16T (RH threads) & HXAB-16T (LH threads)
