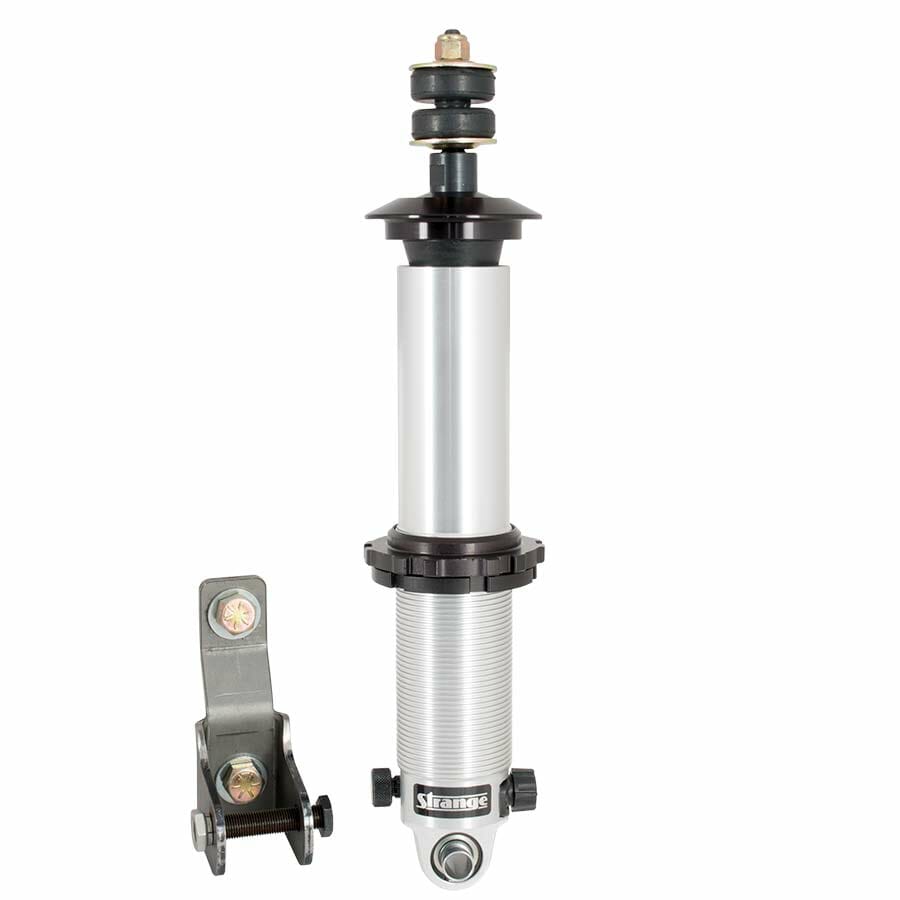

Double Adjustable Coil-Over Shock
Rear – Sold as each
Coil-Over Benefits
• Compact & lightweight
• Allows adjustments to ride height
• Wide range of spring rates available
Drag Racing
Softening extension allows more downward force on the rear tires
Stiffening compression delays the return to normal ride height
Performance Street / Road Racing
Stiffening extension & compression reduces body roll
Enhances handling & cornering characteristics
Rotating Knobs Clockwise Stiffens Valving
Dimension A
Extended 18.71″ / Compressed 12.2″
Features
• Lightweight aluminum body
• 10 extension & compression settings
• Provides a wide range of control
• Easily accessible independent external adjustment knobs
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved
Includes
– Upper & lower spring seats
– Lower seat jam nut
– Upper stud with rubber cushions
– Concave washers & lock nut
– Lower spherical ball bearing
– Lower bracket – Drilling required
– Mounting hardware
CLICK HERE for install instructions & parts list.
